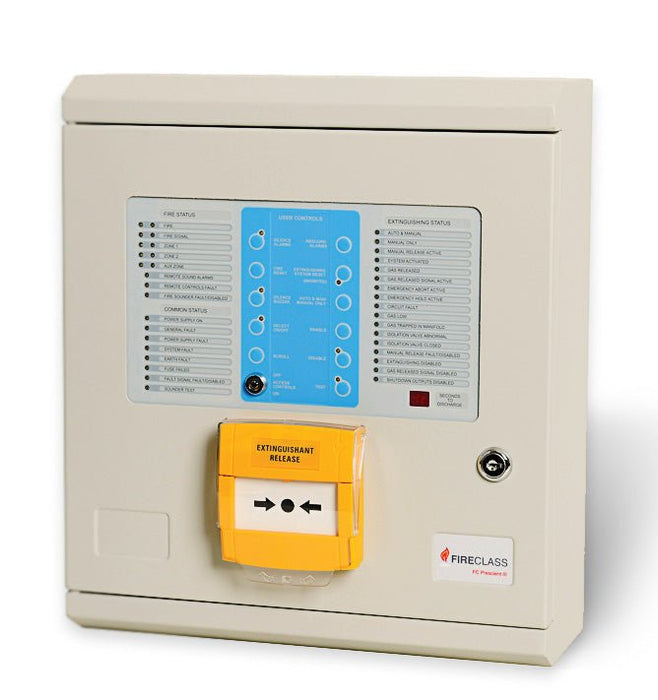

The FireClass Prescient III gaseous extinguishant control panel is powerful yet
user-friendly and is designed and manufactured to a high standard. The panel
features approval to BSEN 12094-1:2003, BSEN 54-2 and 4 and is designed to
BS7273 part 1.

The panel has extensive configuration options but is easy to install, program
and operate. The removable chassis enables the engineer to “first fix” an
empty cabinet and then fit the chassis at the commissioning stage.
This is supported by comprehensive documentation on commissioning,
operating, maintenance and fault finding.
In addition there is a comprehensive range of compatible accessories available
to meet most customer requirements.

Three fully-monitored detection zones are provided. Zones 1 and 2 normally
provide first stage and second stage fire conditions to allow extinguishant
discharge (coincidence detection zones). Zone 3 is an auxiliary zone for
detection only purposes. Zone 4 is used as a manual release zone.

General Features

- Fully Approved.
- Monitored inputs for gas discharged, gas low, isolation valve closed/abnormal, gas trapped in manifold.
- Control inputs for auto/manual, gas hold, gas abort.
- 1 minute actuator cut off option.
- Monitored actuator/solenoid release.
- Common fire, fault, relay / monitored output facilities.
- 1st stage, 2nd stage, 3rd stage and gas discharged relay / monitored output facilities.
- Reset relay facilities.
- Single or double knock operation.
- Pre•discharge delay adjustable from 0 to 60 seconds with visible countdown timer.
- Discharged indication with or without pressure switch.
- Inhibit silence alarms until gas discharged.
- Option for rapid buzzer pulse when gas imminent.
- One man zone and sounder test.
