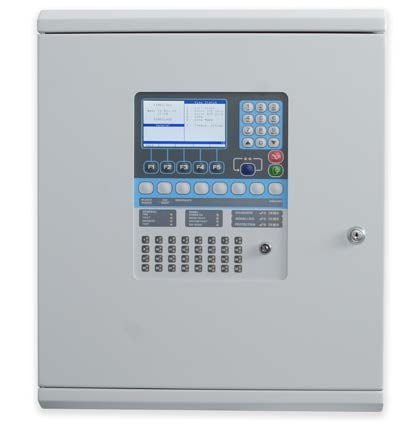

The FC604S is a four loop FireClass networkable panel with a shallow housing. This
panel can have four standard-power loops or two high-power loops with each panel
having a maximum of 500 addresses. It features a colour LCD display with 32 zonal
LEDs, and has a maximum capacity of 17 Ah batteries.

The FC604S panel is also available as a Scandinavian variant with fireman’s
keyswitch.

General Features

- Colour LCD display with 32 zonal LEDs
- Simple to operate user interface
- Flexible loop configurations with up to 1A current to increase use of loop power and address capacity
- Comprehensive point management
- 10000 event log
- Editable quiescent display text
- Extensive special cause and effect programming
- Manual and automatic walk test
- Automatic battery test
- Detector service functions
- Front panel controls enabling text and configuration changes
- Networkable
- Up to seven fully functional repeaters
- Optional easy-mount plate
- Optional expansion kit for mounting additional cards
