TITANUS PRO·SENS® and PRO·SENS®/Net air sampling smoke detector is designed to monitor large areas. Thanks to a combination of innovative High Power Light Source (HPLS) technology and patented LOGIC∙SENS fire pattern recognition, the TITANUS PRO∙SENS® provides maximum sensitivity and security against false alarms even in difficult environmental conditions.

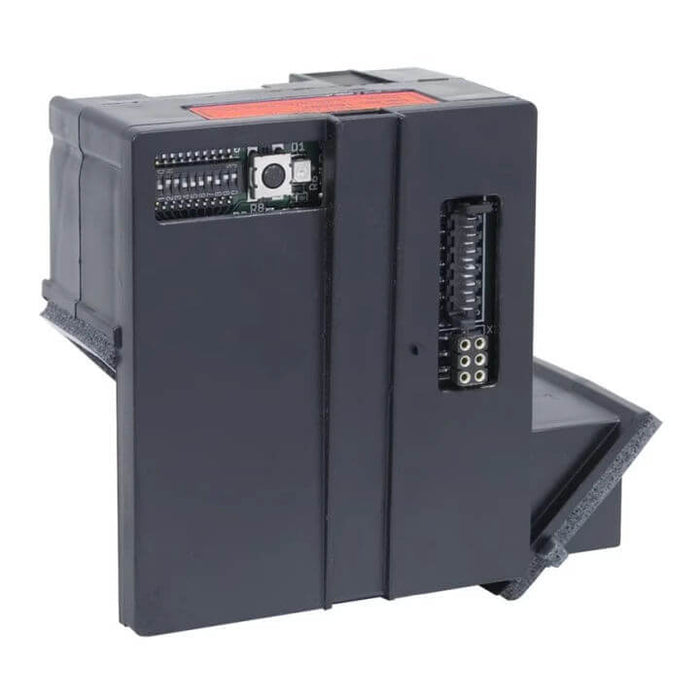

TITANUS PRO·SENS® is a modular ASD and consist of the basic device (1), one or two detector modules (2) and an adhesive front film sheet (3) which can be selected from the below combinations.

General Features:

• Max. fire alarm sensitivity 0.015% obsc./m.
• System coverage up to 2 x 3,000m².
• Up to 2 x 300m pipe length and depending on detector types up to 1 x 100 or 2 x 72 holes.
• Operating temperature: from -20°C up to 60°C and -40°C depending on version.
• Free slots for integration of additional modules such as bus modules.
• Optional Ethernet (TCP/IP)/SNMP/data logger.
• Sound pressure level from 23 dB(A) for SILENT version.

Technical Data:

Mechanical Data

• Dimensions mm (W x H x D)
  200 x 292 x 113
• Pipe length (max.)
  2 x 300m
• Number of sampling points (max.)
  1 x 100; 2 x 63
  (SL: 2 x 72**)
• Pipe inlets
  2
• Area of coverage (max.)
  2 x 3.000m²
• Number of Alarm Thresholds per detector module
  1

Ambient Conditions

• Temperature range
  –20°C to +60°C
• Temperature range, deep freeze variant
  –40°C to +60°C
• Rel. humidity (non-condensing)
  10 up to 95%
• IP Rating
  IP 20 (IP 52)

Electrical Data

• Supply voltage
  24 V DC (14 ..30 V DC)
• Quiescent current, starting current (1 detector module)*
  200 mA, 300 mA
• Quiescent current, starting current (2 detector modules)*
  220 mA, 320 mA
• Alarm current with and without reset circuit board (1 detector module)*
  20 mA, 210 mA
• Alarm current with rand without reset circuit board (2 detector modules)*
  20 mA, 240 mA
• Approvals
  EN 54-20, EN 54-17

* at 6.9 V standard fan voltage
** when using the fan board FC-3
