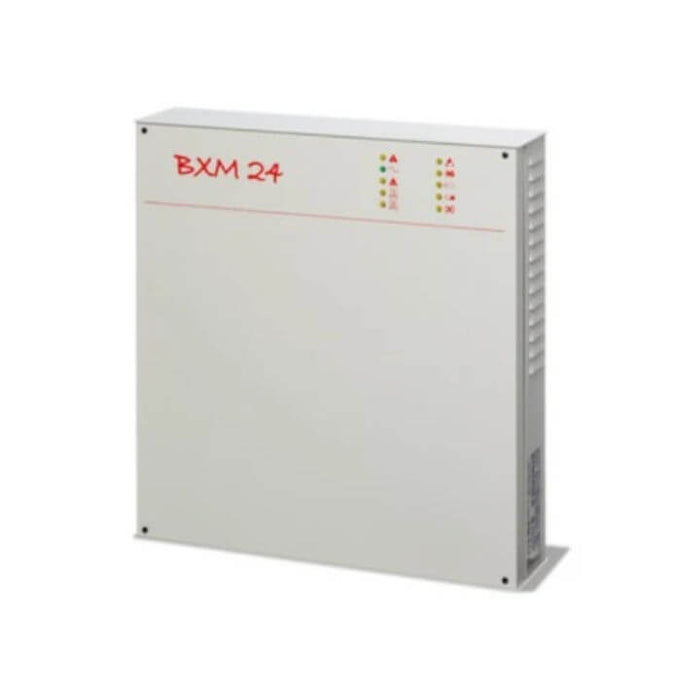

The BXM24/25-U and 50-U are approved by IMQ to EN 54-4:1997 + A1:2002 and EN60950-1:2001. The steel housing contains a 2.5 amp or 5 amp switch mode power supply and monitoring board and has space to accommodate 2 x 12V 17Ah sealed lead acid batteries. The 10 front panel LED’s comprehensively indicate the status of the unit.

General Features:

• Robust metal housing.
• Twin fused outputs.
• Temperature compensated charging.
• Deep discharge protection of batteries.
• Fault relay output.
• Size 383mm wide x 408mm high x 97mm deep.
• Weight 4.3Kg (excluding batteries).
• Supply voltage 230VAC 50/60Hz.
• Comprehensive LED status indication.
