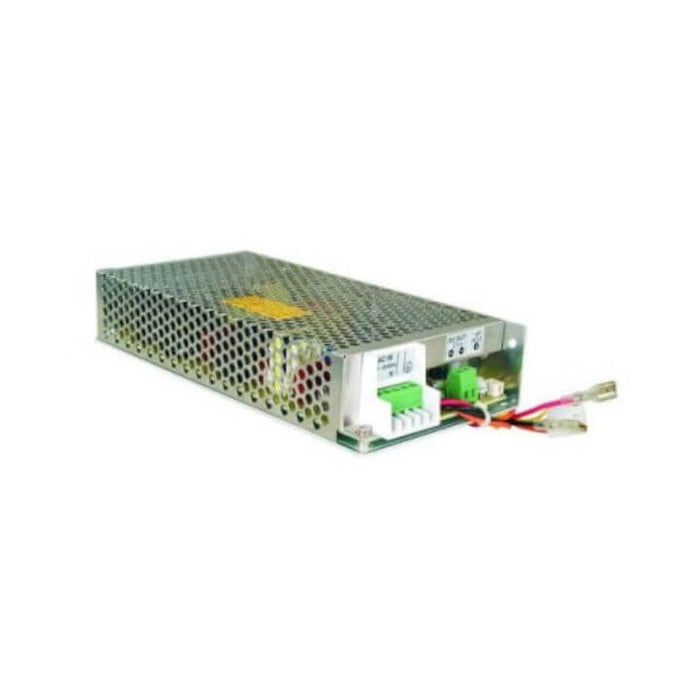

The BAQ is a power supply unit and battery charger to use with appliances that require a regulated voltage of 27,6 V and a maximum current of 5,5 A. Its power output is protected against overload, short-circuit and accidental inversion of the battery polarity.

Technical Information:

• Input Voltage:
  230 VAC, -15% / +10%, 50/60Hz.,
  110VAC -15% /+10% 60Hz for BAW Models.
• Output Voltage:
  27,6VDC, 1% / +1%.
• Max. battery size (charge):
  BAW50T24 = 2 x 12V - 17Ah max.
  BAW75T24 = 2 x 12V - 17Ah max.
  BAQ140T24 = 2 x 12V - 17Ah max.
• Operating Temperature:
  -5o to +40oC.
• Dimensions (W x H x D)
  BAW50T24 = 129 x 38 x 98 mm.
  BAW75T24 = 159 x 38 x 97 mm.
  BAQ140T24 = 205 x 38 x 98 mm.
• Weight:
  0.5Kg BAW50T24 and BAW75T24
  0.7Kg BAQ140T24.
