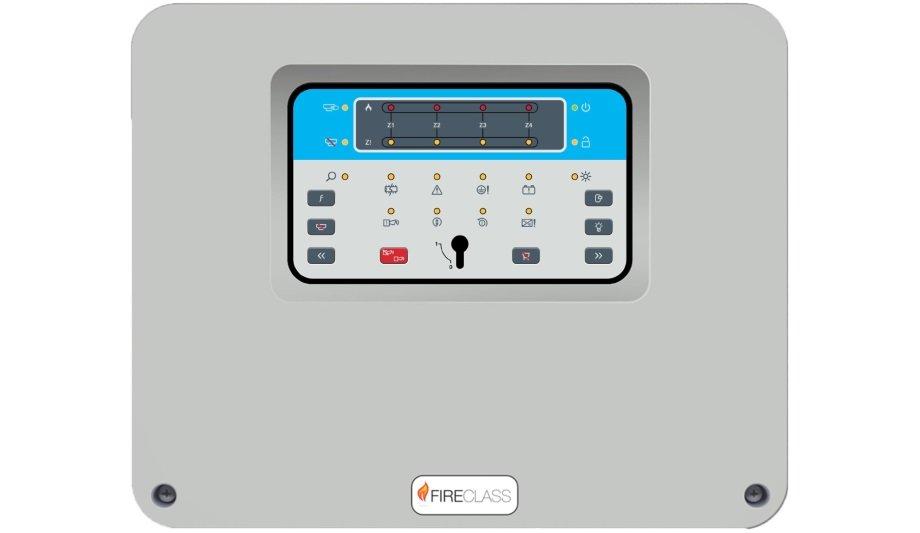

Fireclass Essential 4 Zone Panel

The Fireclass Essential Panel range is an EN-approved, low cost conventional panels that are available in both 2 Zone and 4 Zone variants. The panels can support up to 128 devices with a maximum of 32 devices on each zone. The panels are approved to EN 54-2, EN 54-4, and listed as part of the EN 54-13 system certificate.

The panel UI has the following features:

• 18 LEDs on the 2 Zone Panel and 22 LEDs on the 4 Zone Panel
• One piezo buzzer for audible indication
• Eight push buttons for user inputs

Key Features

• Modern and aesthetic design
• Surface mountable
• Option to set delays for outputs during alarm
• Buttons for silence, resound, and reset
• Two open collector outputs
• Disable feature for sounders and zones
• Volt-free fire and fault relays
• Test feature for installation
• Two auxiliary inputs: alert input and class change input
• Support for all FireClass 600 and 700 series conventional detectors, conventional sounders, and VADs
• Support for third party devices
• Please note: For full details on all the supported devices, refer to the EN 54-13 certificate.
• Fully compliant with EN 54-2, EN 54-4, and is listed as part of the EN 54-13 system certificate
