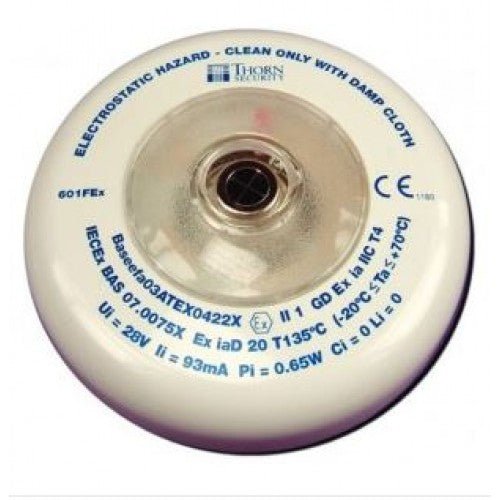

601FEx Infra-red flame detector - 516.600.066
516.600.066FC 601FEx Infra-Red Flame Detector
The 601F and 601FEx point type flame detectors form part of the 600 series of conventional detectors. The range includes heat, optical, ionisation and carbon monoxide detection technologies and with the addition of the 601F and 601FEx now encompasses infrared flame detection.
The 601FEx is a full featured solar blind flame detector for indoor use and boast a high degree of false alarm immunity. The 601FEx is an intrinsically safe version intended for use in hazardous atmospheres and must be connected via a suitable isolator or shunt diode safety barrier in a certified Intrinsically Safe system.
Infra-red flame detectors such as the 601FEx are designed to respond rapidly to fires which involve clean-burning fuels such as alcohol or methane.
The 601FEx Flame Sensor, by virtue of its operating wavelength and flicker discrimination is insensitive to normal environmental influences. The 601FEx Flame detector should, normally, only be used inside buildings to supplement heat and smoke detectors.
Key Features
- Solar Blind for false alarm free operation
- Intrinsically safe
- Fast response to flame
- Detect a 0.1m2 fire at a range of 20m
- Discrete ultra-low profile design
- Fits a standard detector base or functional base
- Integral alarm LED with 360-degree angle of view
- Use T110 infrared test source (With separate adaptor)
- Complies to EN54-10 for Flame Detectors
Images for illustration purposes only
