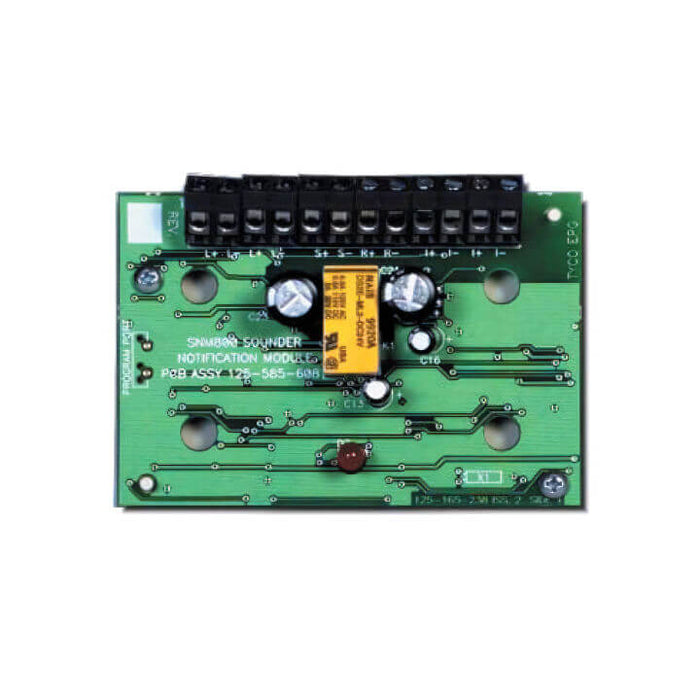

The SNM800 is a remote addressable sounder circuit  output device capable of switching sounder and speaker circuits up to 2A @ 24V DC. or provide a monitored  output facility for other applications. These can be used in addition to the two circuits provided as standard on most MZX detection panels. The SNM800 can support sounder  circuits wired as a spur (Class B – Style Y) or in a loop configuration (Class A – Style Z).

Technical Information

• EMC/RFI:
  Equal or exceeds EN61000.6.3 & EN50130-4
• Operating Temp:
  -25°C to +70°C
• Relative Humidity:
  Up to 95% RH non-condensing
• Dimensions:
  14H x 148W x 87D mm
• Weight:
  100g
• Output Rating:
  2A @ 24 Vdc
• EOL Resistor:
  27k 1/2 W
