Simplex MX Technology Sounder-Beacon Base - 4098-5212

• Low power sounder-beacon bases are loop powered from the MX Loop Module
• Provides one point of installation for detector, isolator, and sounder or sounder-beacon
• Listed to UL 464 for general signalling operation Sounder Base Details:
• Select one of four sounder output levels by programming from the host fire alarm control panel with MX Loop Module: – Low, 60 dB – Mid Low, 70 dB – Mid High, 80 dB – High, 90 dB – Sound output levels are at 3 ft (1 m)
• Output is set at the sounder or sounder-beacon base for Continuous and then one of five output patterns is selected from the host fire alarm control panel with MX Loop Module: – Continuous Tone (970 Hz) – Temporal pattern 3 (Fire evacuation) – Temporal pattern 4 (CO warning) – March Time (60 beats per second) – Slow March Time (20 beats per second)
• Sounder bases require a separate address; with sensor, 2 addresses are required per sounder base with sensor
• Provides the sounder operation detailed above and includes a multiple LED 1.5 cd beacon for local visible notification.
• Beacon flash rate is selectable at the host fire alarm control panel with MX Loop Module as either Slow Flash at ½ Hz, or Fast Flash at 1 Hz.
• Sounder-beacon bases require 2 addresses; with sensor, 3 addresses are required per sounder-beacon base with sensor.

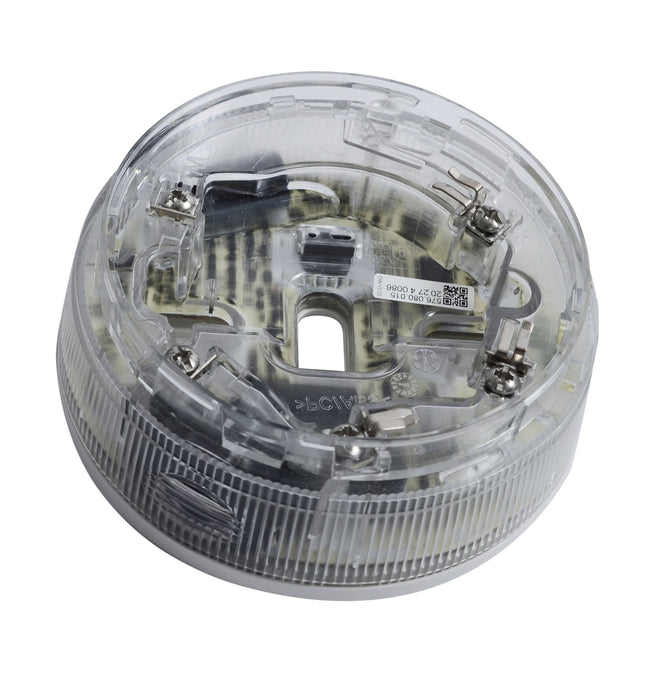

Photograph is for illustration only
