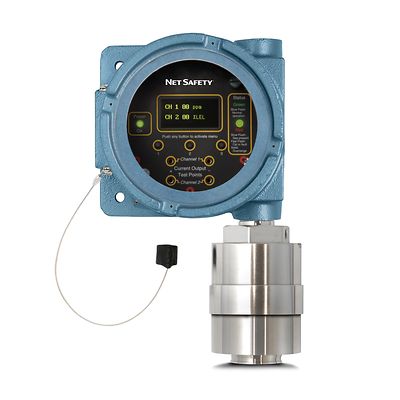

The Net Safety Millennium II (M21) Single Channel Universal Gas Transmitter can be fitted with a wide range of toxic gas or combustible gas sensors, including infrared, catalytic bead and electrochemical. Gas sensors are pre-calibrated and easily connect to the gas transmitter which recognizes a newly fitted sensor, automatically uploading the gas sensor’s specific configuration profile.

Features

• Universal gas transmitter - compatible with all gas sensor types (infrared sensor, catalytic bead sensor and electrochemical sensor)
• Wide voltage range allows for greater stability and system compatibility
• Lowest power consumption available
• Full diagnostics with event and data logging
• Intuitive menu system provides operators with non-intrusive set-up and calibration interface
• Field selectable gas curves and ranges
• Long range (+2,000 ft/600 m) sensor separation


Specifications

Enclosure Rating

IP66 (Aluminum), IP67 (Stainless Steel), IP64 (with sensors) Type 4X

Certifications/Approvals

FM6320, ANSI/ISA 12.13.01, CSA 22.2 No. 152:2006, IECEx

Mounting

Surface Mount/Pipe Mount/Duct Mount

Weight

Aluminum: 5.5 lbs (2.5 kg), Stainless steel: 7.0 lbs (3.2 kg)

Warranty

3 years
