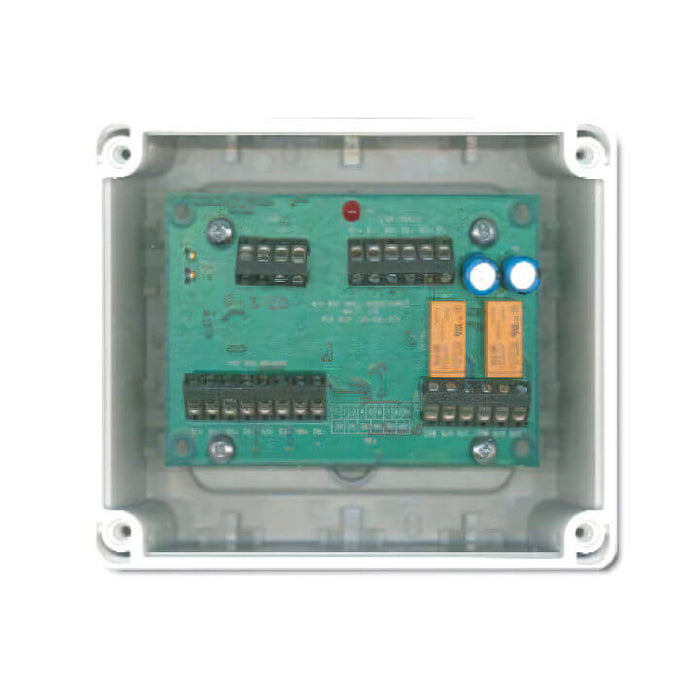

The MIO800 is a general purpose interface module. It allows multiple input and output connections to be made between external equipment and the MZX Digital loop. Three inputs and four outputs are provided. Each input and output can be programmed independently using the MZX Consys configuration tool to provide customised functionality.

An IP55 rated D800 style housing is used as the standard enclosure with the option of a DIN-rail mounting kit for in-cabinet installations.

Features:

• Normally open or normally closed inputs

• Inputs monitored for open or short circuit faults.

• STYLE B (short circuit gives an alarm) or STYLE C (short circuit gives a fault) selectable for inputs

• Provides four digital outputs

• All four outputs can drive a HVR800 module

• Two outputs have both volt free change over contacts and HVR Drivers

Technical Information:

• Operating Temp:
  -25°C to +70°C
• Storage Temperature:
  -40°C to +80°C
• Relative Humidity:
  Up to 95% RH non-condensing
• Dimensions (HxWxD)
  Module - 72 x 110 x 18 mm
  Boxed - 124.5 x 166.5 x 84.5 mm
• Weight:
  Module - 70g
  Boxed - 271g
• Relay contact rating:
  DC - 2A @ 24V DC
