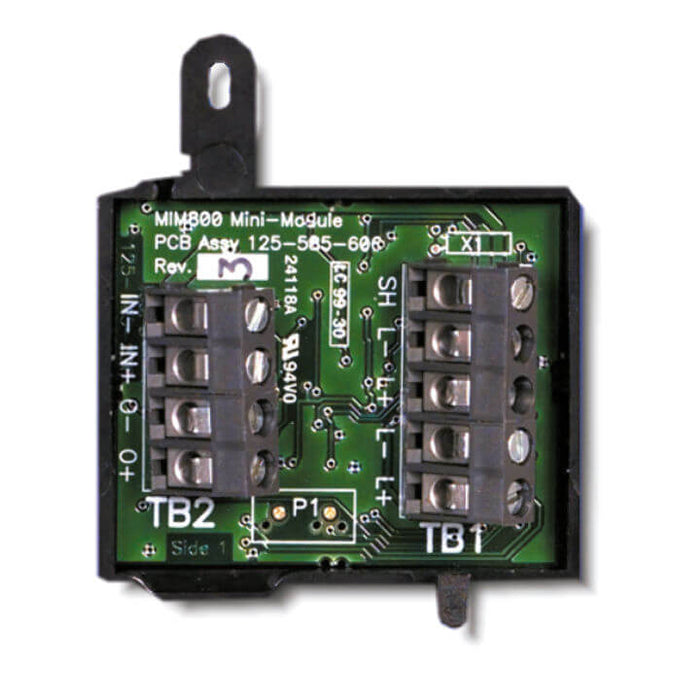

The MIM800 is a small MZX addressable module designed for monitoring a single input circuit. The MIM800 can monitor normally open or normally closed inputs and provides open and short circuit monitoring of the line. The MIM800 is designed for fitting in small devices such as flow switches, special detection devices and explosion proof callpoints. A variant of the MIM800 is used in all callpoints and pullstations.

Technical Information:

• EMC/RFI:
  Equal or exceeds EN50081-1 & EN50130-4
• Operating Temp:
  -25°C to +70°C
• Relative Humidity:
  Up to 95% RH non-condensing
• Dimensions:
  13H x 48W x 57D mm
• Weight:
  100g
• EOL Resistor:
  200 Ohm
• Monitor Resistor:
  100 Ohm
