Consilium Salwico- MCP-SPR-A (GB) - External Sprinkler Release Callpoint -  5200037-01

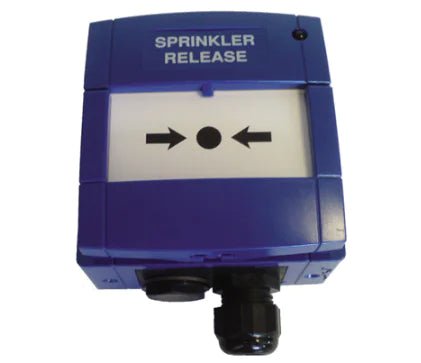

The MCP-SPR-A is a push button for outdoor environment and designed for the Salwico addresssable fire alarm systems.

The selected material PC/ABS and the encapsulation, with ingress protection IP67, makes
it very suitable for harsh environment.

Pressing the glass causing it to crack activates the sprinkler release. A protective plastic coating on the glass prevents operator injury.

An LED on the front of the push button indicates the fire alarm. The LED remains lit until the fire alarm has been reset on the fire alarm panel.

The push button can be tested with a special key included in the delivery.

The address of the push button is set with a DIP-switch.

The MCP-SPR-A provides shor t-circuit protection via connections 1–4 and no short circuit protection via connections 5–8.

Data

- Nominal voltage 34 VDC

- Working voltage 20–38 VDC

- Supervising current 0.2 mA

- Alarm current 2.5 mA

- Ingress protection IP67

- Temperature range -25ºC to +70ºC

- Ambient humidity 0 to 95% RH

- Material PC/ABS

- Colour Blue, RAL3001

- Weight 240 g

- Cable dimension Ø6–12 mm
