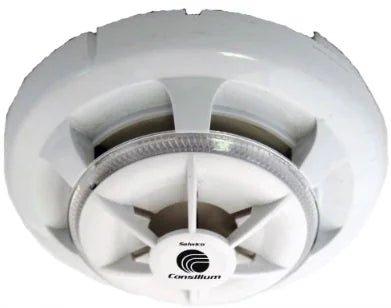

Salwico EV-H is an analogue addressable heat detector.

Salwico EV-H is designed to give early warning for the presence of heat in the supervised area, and is available in two temperature classes: CS (fixed 84 °C) and A1R (fixed 54 °C + rate of rise 0.8 °C/min), see par t no. 040000 for 54 °C version.

Salwico EV-H is equipped with OMNIVIEW 360° LED indicator giving a clear, full 360° visibility of the red alarm indication.

For harsh environments, use the IP67 variant of EV-H.

See separate document “Base matrix” for information about suitable base plate.
The technical detector address is set with a special programming tool. Valid addresses are 1-254.

Salwico EV-H is equipped with an output for remote indication.

For detailed information about appropriate systems for the detector, see separate document “Compatibility of Loop Units/System”.

- Function Thermistor 84 °C (also available in 54 °C version)
- Nominal voltage 24 V DC
- Operating voltage 20–38 V DC
- Operating current 0.2 mA
- Alarm current 5 mA
- Current for remote indication Max 2 mA
- Ingress protection Depends on base
- Cable terminals Depends on base
- Temperature range -25 °C to +80 °C
- Ambient humidity 0 to 95% RH non-condensing
- Material PC/ABS
- Colour White
- Weight (w/o base) 120 g ± 5%
- Programming tool Par t no. 5200123-00A
