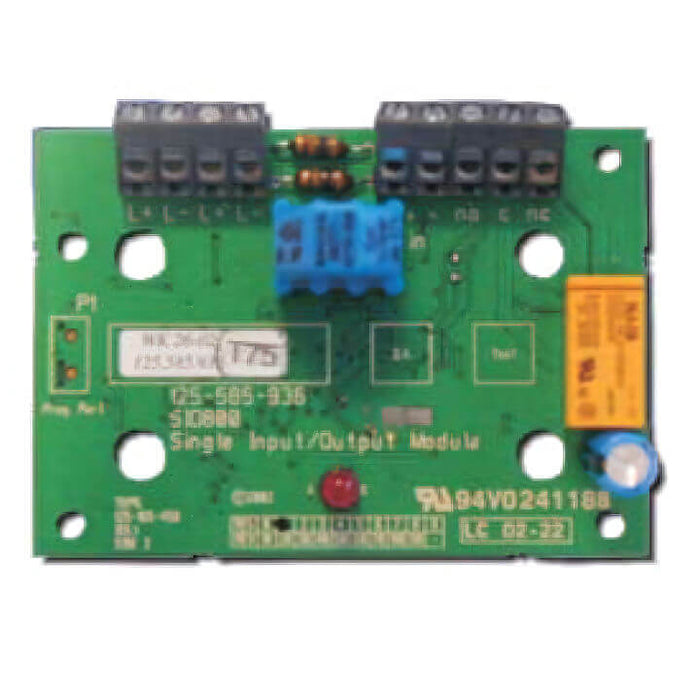

The SIO800 Single Input/Output Module is designed to provide a monitored input and a volt free relay changeover output. It consists of an input for monitoring the status of a normally open contact and a single changeover relay contact. The relay is controlled by a command sent from the MZX Fire Controller via the addressable loop. The state of the relay (activated,deactivated or stuck) is reported to the MZX Fire Controller. The LED may be turned ON or OFF by the controller during a relay activated condition.

Technical Information:

• EMC/RFI:
  Product Family standard EN50130- 4 in respect of Conducted Disturbances, Radiated Immunity, Electrostatic Discharge, Fast Transients and Slow High Energy. 61000-6-3 for Emissions.
• Operating Temp:
  -25°C to +70°C
• Relative Humidity:
  Up to 95% RH non-condensing
• Dimensions:
  14H x 148W x 87D mm
• Weight:
  105g
