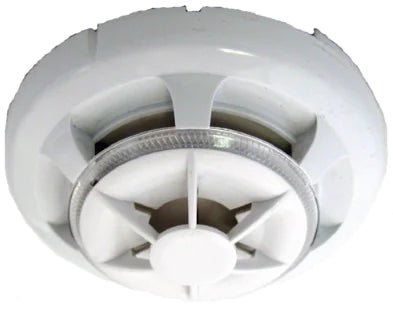

Consilium Salwico - EV-PH OPTICAL SMOKE/HEAT DET - 040030

Salwico EV-PH is an analogue addressable combined optical smoke and heat detector.
Salwico EV-PH is designed to give early warning for the presence of heat and smoke in the supervised area. Both heat and smoke alarm can be generated individually. At the same time.

Salwico EV-PH offers a high protection against unwanted alarms.

Salwico EV-PH is equipped with OMNIVIEW 360° LED indicator giving a clear, full 360° visibility of the red alarm indication.

The detector can be placed in harsh environments if it is mounted on a splash proof
base.

See separate document “Base matrix Salwico units” for information about suitable base
plate.
The technical detector address is set with a special programming tool. Valid addresses are 1-254.

Salwico EV-PH has a fine pitch net which improves the response to smoke and also reduces the amount of dust etc entering the detector.

Salwico EV-PH is equipped with an output for remote indication.

-          Function Optical light scattering +thermistor 54 °C

-          Nominal voltage 24 V DC

-          Operating voltage 20–38 V DC

-          Operating current 0.2 mA

-          Alarm current 5 mA

-          Current for remote indication Max 2 mA

-          Ingress protection IP44 (if used together with IP-BASE, 5100774-00A and IP-

-          ADAPT/IP-ADAPT SCI, 5100775-00A/5100776-00A)

-          Cable terminals Depends on base

-          Temperature range -25 °C to +70 °C

-          Ambient humidity 0 to 95% RH non-condensing

-          Material PC/ABS

-          Colour White

-          Weight (w/o base) 120 g ± 5%
